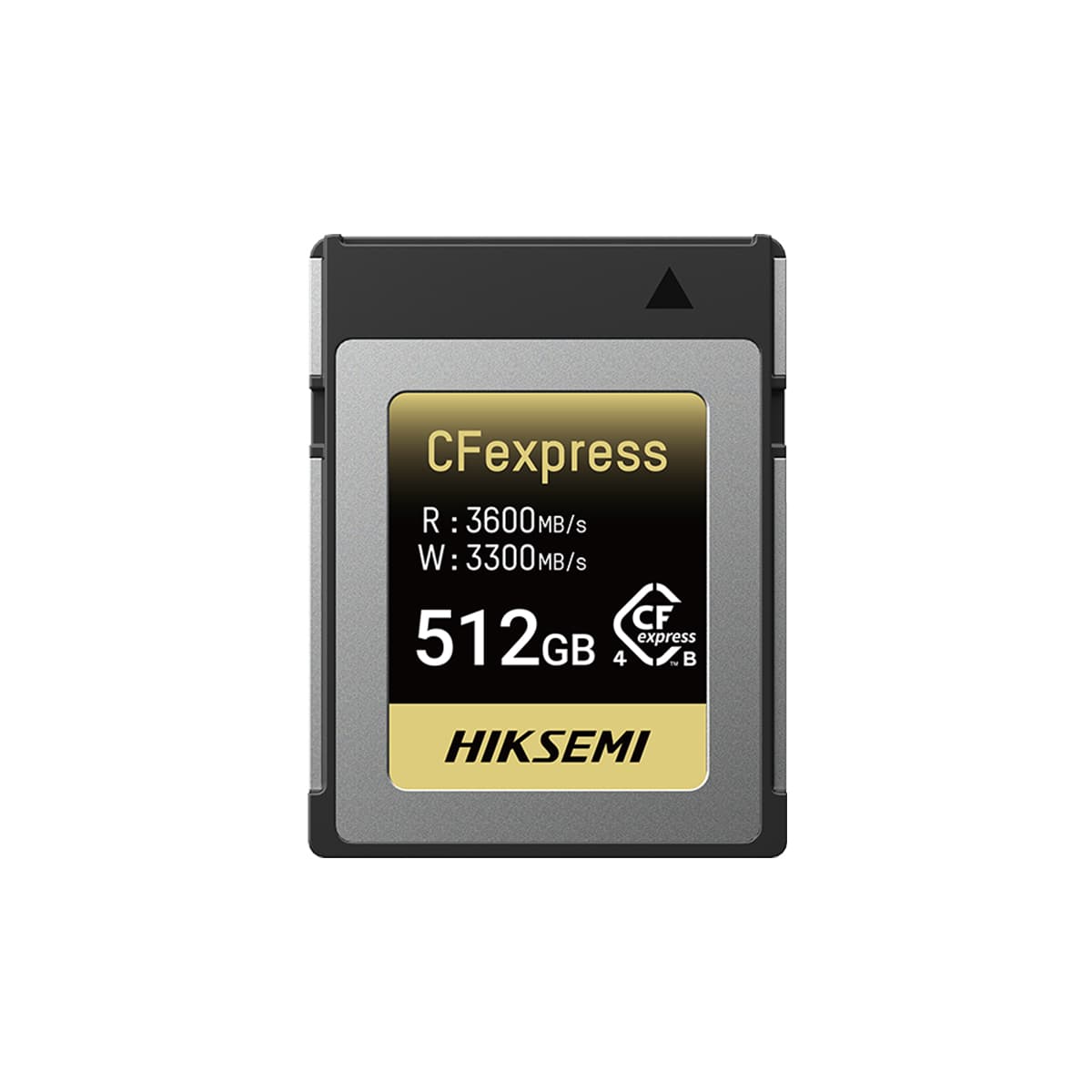

Introduction
HIKSEMI E300P series products support CFexpress Type-B form factor, use high-quality storage media, and offer higher performance and longer lifespan. They provide read speeds up to 3600 MB/s and write speeds up to 3300 MB/s, integrating high-speed PCIe Gen 4 ×2 interface and 3D TLC NAND flash technology (also supports PCIe Gen 3×2).
Functional Features
- Main Components - 3D TLC NAND Flash Memory - Standard Endurance Technology (SET)
- Form Specifications - CFexpress Type-B
- Algorithm - Garbage collection, wear leveling
- Hot-swappable support - BIOS needs to be enabled
- Compatibility - Gen 4.0 x2, NVMe Standard Revision 1.4 - The interface rate supports downward compatibility - Special Feature: Trim Support, S.M.A.R.T Support
- Dust and water proof - IPX7
- Endurance： - 256G/1024G: 682TB/1715TB
- Power Management - 3.3V±5% Power Supply
- Temperature - Operating: -12°C~72°C - Storage: -25°C~85°C
- Shock (In Operation/Out of Operation): - 50 G/11 ms
- Vibration - Non-operating: 5 GRMS (10-1000 Hz)
- Reliability - Uncorrectable Bit Error Rate(UBER):1 sector per 1016bit read - Mean Time between Failures(MTBF):2 million hours - Data Retention: 3 years @ 40°C
